AI Agent Guide ​
Basic Controls ​
Getting Started ​

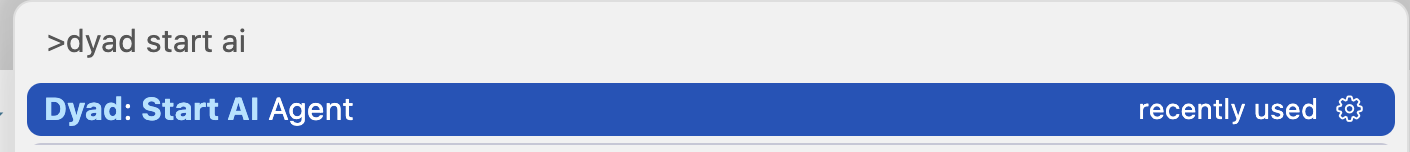

Start the agent via the VS Code command palette (Shift+Ctrl+P -> Dyad: Start AI Agent).

Once the agent screen loads, click "Start New Chat" to begin interacting with the agent. The agent is then ready to take your input.
Handling API Errors ​
The agent handles API errors gracefully. If you encounter an error (rate limits, service overload, etc.), it will display in red:
- ✗ API rate limit exceeded. Please wait a moment before trying again.or
- ✗ API service is currently experiencing issues. Please try again in a few moments.Simply type continue and the agent will resume from where it left off - you don't need to restart or repeat your request.
Interrupting the Agent ​
Press ESC at any time to pause the agent mid-execution. This lets you redirect it with new instructions or corrections.
Slash Commands ​
| Slash Command | What it does |
|---|---|
/config | Open the configuration panel (tool permissions, model, context window, effort) |
/max_tokens <n> | Set the most the agent may write in one response, e.g. /max_tokens 32000. The default is 64,000 |
/compact | Manually compress conversation to free up context |
Understanding Sessions & Capabilities ​
While powerful, we are only at the beginning of where this technology can go. Although it can feel magical, understanding how the agent works will help you get the best results.
Session Management:
Each new chat is fresh - A new chat has no memory of earlier ones.
Resuming a conversation - To carry on with earlier work, click "Resume Previous" on the start screen and pick the conversation. Its transcript, model, context window, effort and max tokens come back. The Julia session's variables, your permission choices and any background work do not.
Use Git for continuity - Commit your work regularly. This lets you show the agent what exists and build on it in new chats
Document as you go - Save important outputs, explanations, and decisions during the session. Tell the agent to save explanations and design decisions as Markdown files in e.g. the
docs/directory, and then tell it to read those files in a new session.
File and Data Tips:
Images and text work great - The agent can read screenshots, diagrams, and text files that are in your project directory. Just give it the path to the file and tell it to read the content!
Convert PDFs to images - The agent can't parse PDFs directly; convert them to images first. If you have a tool like
pandocinstalled, tell the agent to use that.Stay in your sandbox - The agent works within the Dyad library directory you specified at startup, and cannot access files outside of that directory for safety reasons. Move everything you need to build your model into your project directory.
What the Agent Can Do:
Read and write code across your Dyad library.
Install Julia packages (via package manager) and system software (via bash through Julia).
Run simulations, create visualizations, and generate plots.
Use Git for version control.
Leverage external tools you've installed (like OpenModelica).
Debug, refactor, and validate models.
Current Constraints:
No web browsing during sessions (can't look up external docs).
Single conversation at a time (processes one request at a time).
No undo feature (use Git commits for rollback capability).
Remember: This technology is evolving rapidly. What you see today is just the beginning. The agent is a powerful assistant that gets better as you learn to work together!
Understanding the Agent ​
How It Works ​
The agent is a skilled modeler and simulator - think of it as an experienced engineer joining your team. It doesn't come with Dyad pre-memorized. Instead, it reads the documentation, studies your codebase, and learns as it goes.
We've tuned it to be good at this: it knows what to read first, how to find answers in the docs, and how to match your existing patterns.
Debugging is a core strength. When something fails, the agent doesn't guess - it investigates with mathematical proof. It traces backward from symptoms to root causes, verifies conservation laws (KCL, KVL, energy balance), and calculates expected vs actual values before proposing any fix. This forensic approach means fewer iterations and more reliable solutions.
Your mental model: Assume it doesn't know something until it reads it. When in doubt, tell it:
"Read the Dyad docs on initialization before we continue"
"Investigate how arrays work in Dyad, then help me build this"
"Look at my existing ThermalMass component and follow that pattern"
"Here's a diagram of the system I want to build - can you implement it?"
This isn't a limitation - it's how you stay in control. You're directing an expert, not trusting a black box.
Core Capabilities ​
Once it's read what it needs, the agent can:
Building & Debugging
Build components from scratch (with proper test harnesses)
Debug compilation and simulation errors
Explain existing code and suggest improvements
Analysis & Visualization
Run analyses (transient, steady-state, parameter sweeps)
Generate plots and interpret results
Compare outputs against expected behavior
Image Understanding
Look at plots and diagnose issues ("why is this oscillating?")
Read flow diagrams or schematics and build components from them
Review simulation output images
Beyond Dyad
Use git for version control (commit, branch, diff)
Run external tools through Julia (e.g., OpenModelica for cross-validation)
Manage package dependencies
What It Knows Out of the Box ​
The agent comes with deep expertise in:
Modeling & simulation - Acausal modeling, multi-domain systems, differential equations, conservation laws
Debugging methodology - Forensic investigation, backward tracing from symptoms to root causes, mathematical proof requirements
Julia programming - Full language proficiency, package ecosystem, performance patterns
ModelingToolkit - System construction, structural simplification, solver configuration
General engineering - Physics fundamentals, circuit analysis, thermal systems, mechanical dynamics
Software engineering - Code quality, testing strategies, version control, documentation
What It Learns From Your Project ​
Dyad syntax (from bundled docs)
Standard component libraries (Electrical, Thermal, Mechanical, Block, etc.)
Your specific patterns and conventions (from your code)
Limitations ​
Can be over-eager - It wants to help and may jump ahead or make assumptions. Guide it step by step.
Will fill in gaps - When not given enough information, it may hallucinate values (like parameter defaults) from its training data. Be specific about your requirements.
Can't see the Dyad GUI - It works with code and files, not the visual editor.
Only as good as the docs - If something's undocumented, it may struggle or guess.
Useful Prompts and Best Practices ​
Philosophy: Share Your Mental Model
The agent will do what you ask, but the quality of results depends on how well you communicate your intent. For simple, well-understood models, a direct request works fine. For complex systems, it's better to discuss and plan first, then implement. Think of it as: discuss → plan → implement rather than jumping straight to implementation. The agent can't read your mind - share your mental model of what you want to build, and it will build it better.
Instead of asking the agent "build me X", instead ask it "How would you build X? Plan it out step by step." Then, critique its plan and only when you are satisfied with the assumptions it's making, should you ask it to build it.
It can also be useful to run a design session with the agent, tell it to save the design to a text file, and then run /compact to reduce the context window's size. The agent doesn't necessarily need every step of your discussion to be able to implement your model, only the final design.
Be Specific About Requirements ​
The agent will make assumptions on your behalf if you don't provide details. Always specify:
The type of model you're building (e.g., "transistor amplifier," "DC motor controller").
Physics and behavior it should exhibit (e.g., "must handle square wave input," "should show saturation effects").
Expected outputs (e.g., "plot frequency response," "validate steady-state behavior").
Timeouts for long operations - If asking the agent to run lengthy simulations or installations, mention it might take time so it can plan accordingly.
Example: Instead of "Build me a transistor," use "Build me an NPN transistor amplifier that can amplify a 1kHz square wave with gain of 10.".
Work Incrementally for Complex Models ​
For complicated systems, build incrementally:
Start with the core functionality.
Test and validate each piece.
Add complexity step by step.
Let the agent validate at each stage.
This approach makes debugging easier and ensures each component works before integration.
Use ESC to Course-Correct ​
Don't let the agent go down the wrong path - interrupt early if you see it heading in the wrong direction. Press ESC and provide new instructions to redirect it.
Leverage the Persistent Julia Session ​
The agent maintains state throughout the conversation, so you can:
Ask it to inspect variables or intermediate results.
Run quick tests without recompiling.
Modify parameters and re-run simulations.
Request Specific Validation ​
Tell the agent what tests or checks you want:
"Verify energy conservation"
"Check frequency response from 1Hz to 10kHz"
"Validate steady-state behavior"
Control the Output ​
If you don't want plots or summaries, say so upfront: "Build this model but don't create plots or summaries."
Reference Existing Components ​
If you know a similar component exists, mention it: "Build this like the existing OpAmp component" or "Use the same interface as the Resistor component."
Long Conversations ​
The agent has a context window (memory limit). For long sessions:
It automatically compacts when getting full (summarizes and continues)
Use
/compactmanually if things feel slowStart a new conversation for unrelated tasks
Resume old conversations from the start dialog
Sub-agents ​
The agent can hand part of a job to a sub-agent: a helper that works on its own and reports back. This happens when a job splits into independent pieces, for example looking something up across a large library while the agent keeps building.
| Kind | What it is for |
|---|---|
| explore | Looks things up in your project and reports what it found. It changes nothing. |
| work | Makes a change and reports what it did. |
Starting one - The agent asks before it starts a sub-agent, unless you set the sub-agent permission, in the config panel, to run without asking.
While it works - You see one "Spawn Sub-agent" card with the task. A sub-agent does not ask you questions or show permission prompts, and its individual steps are not shown.
When it finishes - Its report appears on the card and goes to the agent, which decides what to do next.
Your files stay as they are - A work sub-agent edits a private copy of your project, kept under
.dyad/worktrees/. Nothing reaches your files until the agent applies the change itself, which asks for Write permission as usual.Long runs - A sub-agent that runs for several minutes moves to the background so the agent can carry on. See Background Work below.
The private copy is made with git. If your project is not a git repository yet, the agent makes it one when a chat starts.
Background Work ​
Long-running work does not have to block the conversation.
Background tasks - For a long job, such as a parameter sweep, the agent can start a "Background Task": Julia code that runs in a session of its own while the conversation continues. It asks first, under the same permission as the Julia tool.
Move running work to the background - While a Julia call or a sub-agent is running, its card shows "ctrl+b to background". Press
Ctrl+Bto send it to the background and keep working. A Julia call takes its session with it, so the agent's next Julia call starts in a fresh one.While it runs - The status line under the input box shows what is running, for example "Running 1 sub-agent · 1 background task".
When it finishes - A card shows the result, and the agent is told. If the agent was idle, it picks the result up by itself.
Stopping it - Ask the agent to stop the task.
ESCinterrupts the agent, not background work. "Back to start" and closing VS Code end all background work.
Reference ​
The Interface ​

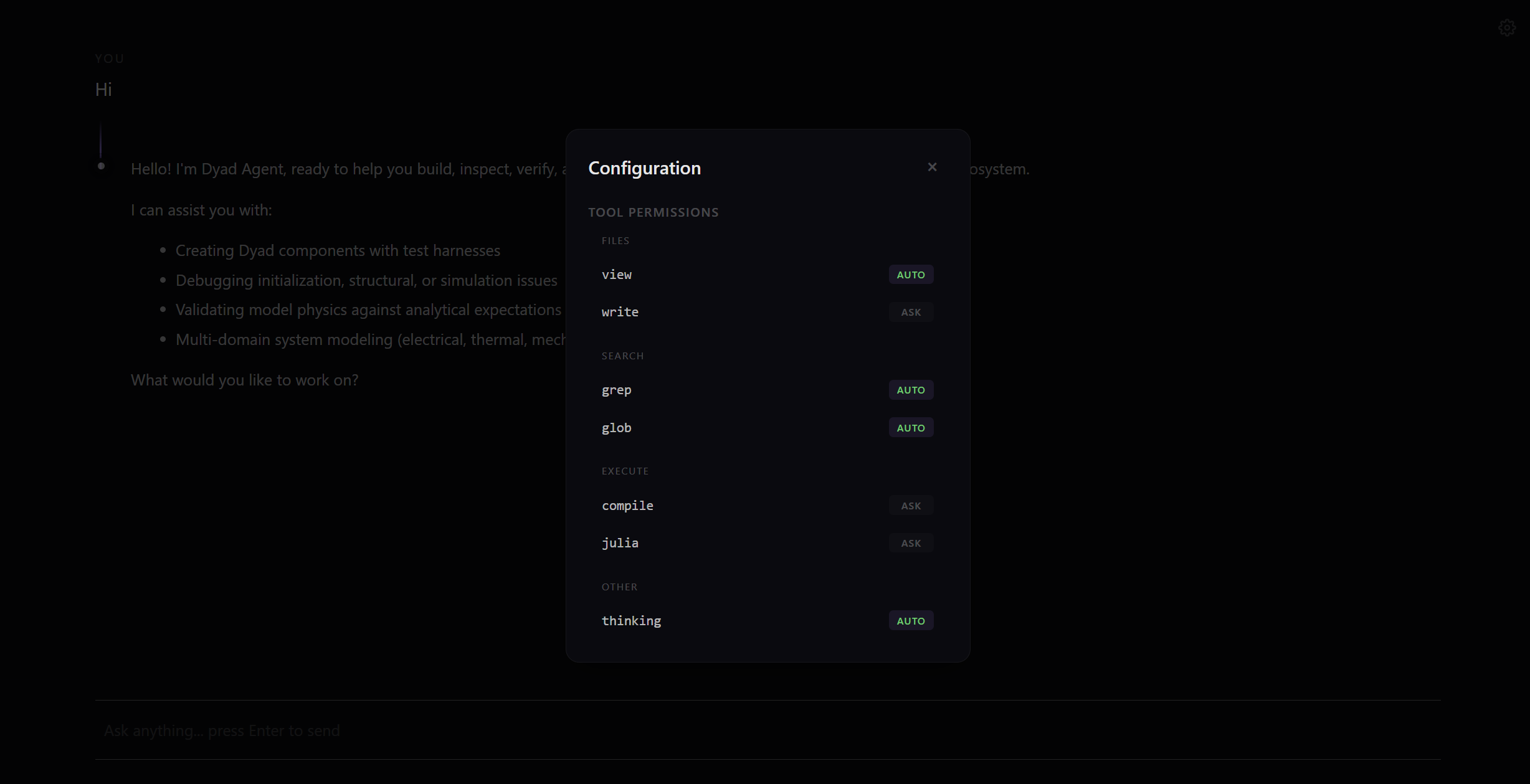

Config Cog - Click the cog icon to open the configuration panel:
Tool permissions (
alwaysoraskfor each tool)Model, context window and effort
Max tokens is not in this panel. Set it with /max_tokens.

Download conversation - Saves the conversation as a single HTML file that opens in any browser.
Share conversation - Uploads a copy of the conversation, as it is at that moment, to your JuliaHub server and gives you a link to it. You choose who can open the link: only you, or anyone signed in to that server.
Back to start - Returns to the start screen. This ends the Julia session and any background work.
Tool Cards - Tool executions appear as cards. Some are expandable:

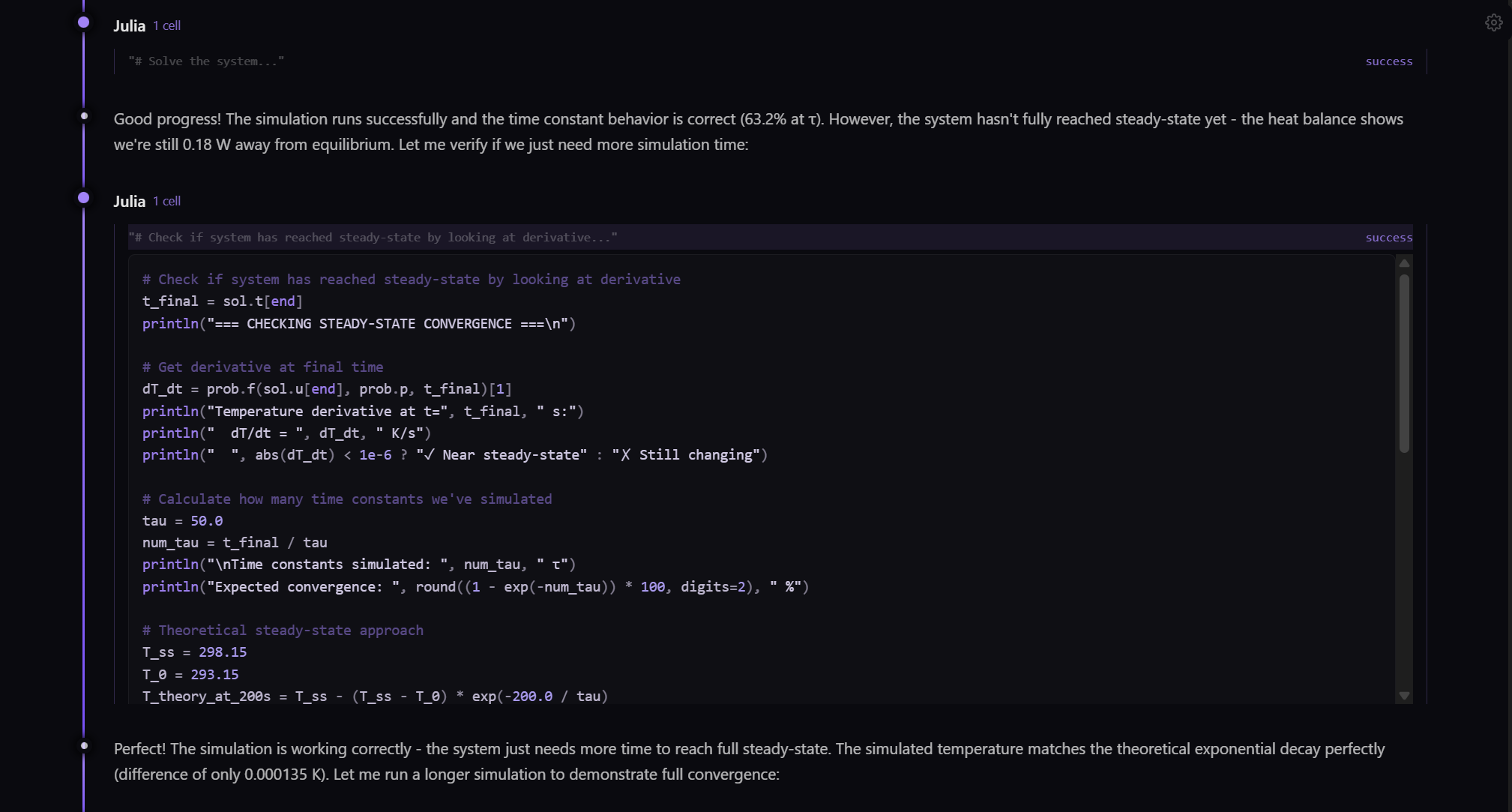

Julia - Expand to see code and output (streams live as it runs)
Dyad CLI - Expand to see the command's output
Write - Expand to see the file diff
Read and search tools show results inline.

Context Indicator - Appears under the input box when context usage reaches 60%:
Shows how much is left before auto-compaction, for example "Context left until auto-compact: 12%"
Auto-compaction starts at 80% usage
Use
/compactmanually if you want to free up space earlier
Model, Context Window and Effort ​
The Model part of the configuration panel has three settings:
model - Which model the agent uses.
context - The size of the conversation memory. Auto-compaction is measured against it.
effort - How much reasoning the model puts into each step, from Low to Max. Higher effort is slower and uses more tokens. Which levels are offered depends on the model, and the row is hidden for models that have none.
Changes are saved as you make them. They are kept with the conversation and come back when you resume it.
Max tokens limits how much the agent may write in one response. Set it with /max_tokens <n>; the default is 64,000, and a new chat starts at the default again. Raise it if the agent stops because a response hit the limit.
Tools ​
The agent uses specialized tools to interact with your project:
| Tool | What it does |
|---|---|
| Julia | Persistent REPL session for running code, inspecting models, debugging. Streams output live. |
| Dyad | Runs Dyad CLI commands, such as compile. Its card is labelled "Dyad CLI", and its row in the configuration panel dyad cli. |
| Read | Views file contents. Shows you which file and what lines. |
| Write | Creates or edits files. Shows you the diff before applying. |
| Glob | Finds files by pattern (e.g., **/*.dyad). |
| Grep | Searches file contents with regex. |
| Background Task | Runs Julia code in a session of its own while the conversation continues. See Background Work. |
| Sub-agent | Starts a helper that works on part of a job and reports back. See Sub-agents. |
| Skill | Loads a skill's instructions into the conversation. See Custom Skills. |
Permissions ​

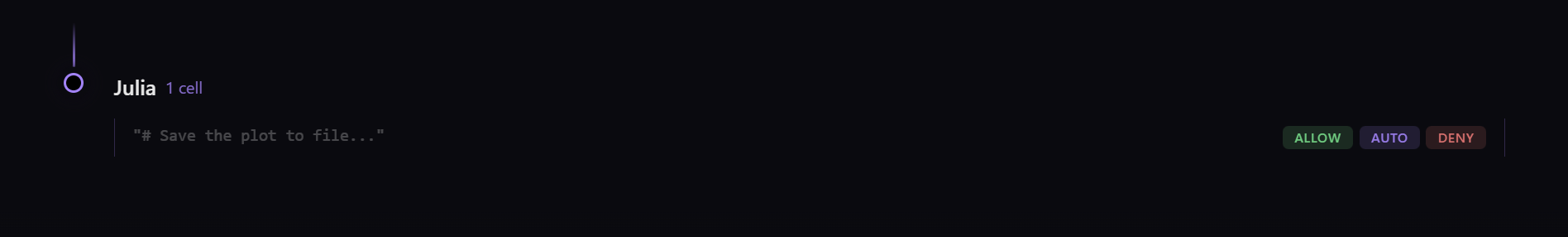

Permissions control which tools run automatically vs. require your approval.
Permission Levels:
always - Tool runs without asking (faster workflow)
ask - You must approve each execution (more control)
Key Details:
Permissions are session-wide - set once, applies to all uses of that tool
Permissions do not persist when you resume a conversation - you'll need to re-approve or set
alwaysagainRead and Write have separate permissions - you can auto-approve reads while requiring approval for writes
Access via the config cog or /config command.

Custom Skills ​
The agent comes with general modeling and debugging expertise, but it doesn't know your team's specific conventions, validation requirements, or preferred workflows. A skill is a set of instructions you write in plain English that tells the agent how to approach a specific type of work. You write it once, drop it in a folder, and the agent follows it whenever the work is relevant.
We follow the Agent Skills standard, popular among many major AI products. Skills that work there will also work here, if you place the folder in the YourLibrary/.skills/ folder.
Example: Thermal Modeling Guidelines ​
Create a file at YourLibrary/.skills/thermal-guidelines/SKILL.md:
---
name: thermal-guidelines
description: Thermal modeling conventions for this project. Load when building, reviewing, or debugging thermal or heat transfer components.
---
# Thermal Modeling Guidelines
## Conventions
- All thermal components must use HeatPort connectors
- Use SI units (Kelvin for temperature, Watts for heat flow)
- Every thermal mass must have an initial T in the test harness
- Name heat flow variables Q_flow, not q or heat
## Required Validation
After building any thermal component:
1. Verify steady-state temperature matches analytical solution
2. Check energy conservation: total heat in = total heat out
3. Test with at least two different boundary conditions
## Reference
For thermal component interfaces and examples, read the files in
agent_resources/stdlib_reference/ThermalComponents/The name identifies the skill. The description tells the agent when to load it — make this specific about the type of work, not just the topic. Everything below the second --- is the instructions the agent follows.
New skills are picked up when a conversation starts. The agent reads the list of available skills at the beginning of each conversation. After adding a new skill - or changing a skill's name or description - start a new conversation so the agent sees it. Editing the body of an existing skill doesn't require this; the agent reads the current version the next time it loads the skill.
Tips ​
Be specific about when to load. "Thermal modeling conventions" is vague. "Load when building, reviewing, or debugging thermal or heat transfer components" tells the agent exactly when it's relevant.
Write instructions, not documentation. Tell the agent what to do: "Always check energy conservation" rather than "Energy conservation is important."
Keep it focused. One skill per concern. A thermal guidelines skill and a naming conventions skill are better than one giant rules file.
Reference files by path. If your skill depends on detailed reference material, point the agent to the file path. It will read it when needed.
Look at the built-in skills for examples. The agent ships with a
dyad-languageskill (how to write Dyad code) and aforensic-debuggingskill (how to investigate failures). Both are inagent_resources/skills/in the agent source.
Standing Instructions ​
For project specific instructions the agent should follow in every session, such as units, naming rules or libraries to prefer, write them in a file named AGENTS.md at the top of your library: YourLibrary/AGENTS.md. The former name, dyad-agent.md, has been deprecated and is no longer read.
When it is read - When a conversation starts, when you resume one, and again after compaction.
Edits take effect right away - If you change the file during a conversation, the agent gets the new text before its next step. You do not need to restart.
Keep it short - Only the first 20,000 characters are read. Put long reference material in a skill instead.
Your request wins - An explicit request in the chat outranks the file.
Sub-agents - A work sub-agent receives the instructions as they were when it started. An explore sub-agent does not receive them.
Troubleshooting ​
Agent seems stuck ​
- Check for a permission prompt waiting for your response at the bottom of the agent's window.
Context indicator appears ​
- Normal from 60% usage. Auto-compaction starts at 80%, or run
/compactmanually.

Package installation times out ​
- Press
ESCto interrupt, and ask the agent to retry with longer timeout.
Compilation errors keep happening ​
- Ask the agent to investigate before fixing - don't just say "fix it".
Agent forgot earlier context ​
This is normal after compaction; re-state important constraints.
If you keep running into this issue, have the agent periodically save important points to a file which it can read back later.
Julia state seems wrong ​
Ask the agent to restart the Julia session to get a clean state.
If the agent is trying to run code that relies on variables from a previous Julia session, it will set itself up again.
