# MPC for autonomous lane changes

In this example, we will develop a lane-changing controller using Model-Predictive Control (MPC). We will use a dynamical model of the car that is sometimes referred to as the kinematic bicycle model, given by the following equations

\begin{aligned} \dot{x} &= v \cos(\psi) \\ \dot{y} &= v \sin(\psi) \\ \dot{v} &= a \\ \dot{\psi} &= \frac{v}{L} \tan(\delta) \end{aligned}

Where $x, y$ are positional coordinates, $\psi$ is the orientation, $v$ is the velocity, $\delta$ is the steering angle, and $a$ is the acceleration. The parameter $L$ is the distance between the front and rear wheels. The state of the car is given by the vector $\mathbf{x} = [x, y, v, \psi]^T$ and the control input is given by $\mathbf{u} = [a, \delta]^T$. When we solve the control problem, we omit the $x$ coordinate, and only consider the lateral position on the road, $y$, as well as the velocity.

After having loaded the necessary packages

using JuliaSimControl
using JuliaSimControl.MPC
using TrajectoryLimiters
using Plots, StaticArrays
Plots.GRBackend()

we generate a reference trajectory for the lateral position y with bounded velocities and accelerations. For this, we make use of the TrajectoryLimiters package, that provides a nonlinear filter to post-process a primitive reference trajectory such that the filtered trajectory has bounded velocities and accelerations.

ẍM = 0.4                        # Maximum lateral acceleration
ẋM = 1.5                        # Maximum velocity
Ts = 0.1                        # Sample time
traj(t) = 1.5 * sign(sin(2pi * t / 20))   # Reference to be smoothed
t = 0:Ts:30                     # Time vector
R = traj.(t)                    # An array of sampled position references

limiter = TrajectoryLimiter(Ts, ẋM, ẍM)

Y, Ẏ, Ÿ = limiter(R)

plot(
t,
[Y Ẏ Ÿ],
plotu = true,
c = :black,
title  = ["Lateral position \$y(t)\$" "Lateral velocity \$\\dot{y}(t)\$" "Lateral acceleration \$\\ddot y(t)\$"],
ylabel = "",
lab    = "",
layout = (3, 1),
)
plot!(traj, extrema(t)..., sp = 1, lab = "Raw reference", l = (:black, :dashdot))

We now define the dynamics and specify that we can measure all three states, $y, v, ψ$.

function car_dynamics(x, u, p, t)
y, v, ψ = x
a, δ = u
L = 2.9 # Length between the axels
ẏ = v * sind(ψ)
v̇ = a
ψ̇ = v / L * tand(δ)
return SA[ẏ, v̇, ψ̇]
end

measurement = (x, u, p, t) -> x
nx = 3 # Number of states
nu = 2 # Number of inputs
ny = 3 # Number of outputs

# Names for states and inputs
xn = [:y, :v, :ψ]
un = [:a, :δ]
yn = xn

cont_dynamics = FunctionSystem(car_dynamics, measurement; x = xn, u = un, y = yn)

When we discretize the dynamics, we will use a time step of $T_s = 0.1$ seconds. The discrete dynamics is required for simulation purposes, while the MPC controller will internally use Trapezoidal integration in this example.

Ts = 0.1
discrete_dynamics = MPC.rk4(cont_dynamics, Ts)
p = nothing

Next up, we define an initial condition $x_0$, the reference trajectory $x_r$ that includes our lateral reference generated above, as well as bounds for the state and inputs. We'll limit the velocity to 120km/h (and divide by 3.6 to get m/s), the acceleration to be within $[-10, 0.2g]$ m/s² and the steering angle to be within $[-25, 25]°$. We also define scaling factors scale_x, scale_u for improved numerics.

x0 = [ # initial state
0,        # y
30 / 3.6, # v
0,        # ψ
]
xr = [ # reference trajectory
Y'                           # y
fill(50 / 3.6, 1, length(Y)) # v
fill(0, 1, length(Y))        # ψ
]

# Control limits
umin = [
-10,  # a
-25,  # δ
]
umax = [0.2 * 9.8, 25]

# State limits
xmin = [
-1.53, # y
0,     # v
-6,    # ψ
]
xmax = [
1.53,      # y
120 / 3.6, # v
6,         # ψ
]

scale_x = [
10,      # y
30,      # v
60.0,    # ψ
]
scale_u = [120 / 3.6, 60.0]

bounds_constraints = BoundsConstraint(; xmin, xmax, umin, umax)

The cost function will be quadratic and we will penalize the deviation from the reference trajectory. We will also penalize the control inputs $u$ to avoid large accelerations and steering angles, and control input differences $\Delta u$ to avoid high jerk (high jerk causes neck discomfort).

running_cost = StageCost() do si, p, t
abs2(si.x[1] .- si.r[1]) +     # y
0.02abs2(si.x[2] .- si.r[2]) + # v
0.01abs2(si.x[3] .- si.r[3]) + # ψ
0.01si.u[1]^2 +                # a
0.00001si.u[2]^2               # δ
end

# Penalize control-action differences
getter = (si,p,t)->SA[si.u[1], si.u[2]] # This function picks the signals to compute the difference of
difference_cost = DifferenceCost(getter) do e, p, t
abs2(e[1]) +      # a
0.001abs2(e[2])   # δ
end

objective = Objective(running_cost, difference_cost)

To improve the stability properties of our MPC controller, we make use of a TerminalStateConstraint that enforce the final state to be equal to the reference state.

terminal_constraint = TerminalStateConstraint(zeros(1), zeros(1)) do ti, p, t
ti.x[1] - ti.r[1]
end
TerminalStateConstraint{Main.var"#9#10", Vector{Float64}}(Main.var"#9#10"(), [0.0], [0.0])

We also define an instance of ObjectiveInput that can be used to set the initial guess for the optimizer, as well as the prediciton horizon $N$. In this case, we will simply use a random guess.

N = 30
x = zeros(nx, N + 1) .+ x0
u = randn(nu, N)
x, u = MPC.rollout(discrete_dynamics, x0, u, p, 0)
oi = ObjectiveInput(x, u, xr)

To solve the problem, we will use the IPOPT solver with Trapezoidal discretization

solver = MPC.IpoptSolver(;
verbose                    = false,
tol                        = 1e-6,
acceptable_tol             = 1e-2,
max_iter                   = 5000,
max_cpu_time               = 20.0,
max_wall_time              = 20.0,
constr_viol_tol            = 1e-6,
acceptable_constr_viol_tol = 1e-3,
acceptable_iter            = 5,
exact_hessian              = true,
mu_init                    = 1e-6,
acceptable_obj_change_tol  = 0.01,
)

observer = StateFeedback(discrete_dynamics, x0) # This indicates that we have perfect knowledge of the states
disc = Trapezoidal(cont_dynamics)

We are now ready to construct the GenericMPCProblem

prob = GenericMPCProblem(
cont_dynamics;
N,
Ts,
observer,
objective,
constraints = [bounds_constraints, terminal_constraint],
p,
objective_input = oi,
solver,
xr,
presolve = true,
scale_x,
scale_u,
jacobian_method = :symbolics,
disc,
verbose = true,
)
[ Info: Building constant Hessian function
[ Info: Calculating sparse Jacobian
[ Info: Done
[ Info: Building symbolic constraint Jacobian
[ Info: Building sparse lagrangian Hessian
[ Info: Done
[ Info: Testing loss function
[ Info: Testing hessian function
[ Info: Testing constraint function
[ Info: Testing constraint jacobian function
[ Info: Testing lagrangian hessian function
[ Info: Done testing
[ Info: Presolving for initial trajectory

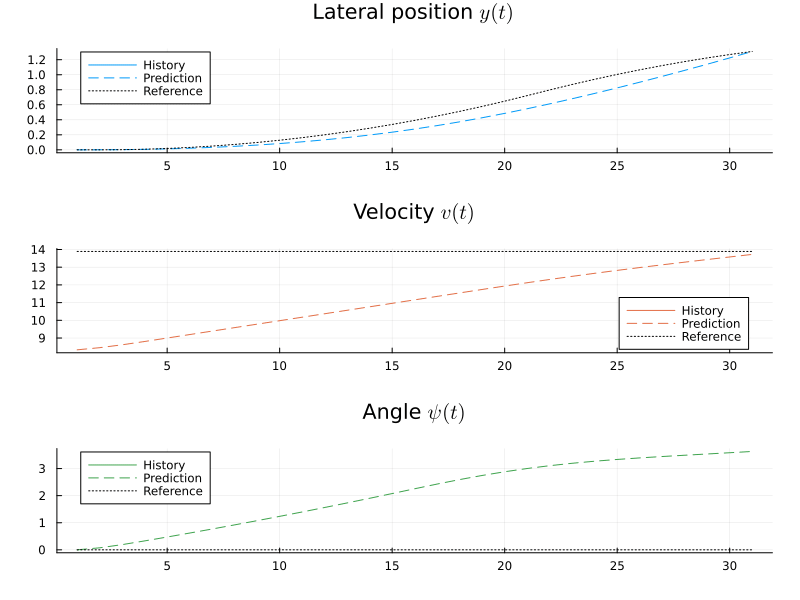

Before we solve the problem, we will define a callback function with which we can create a little animation of the signals as the optimization progresses.

anim = Plots.Animation()
function callback(actual_x, u, x, X, U)
T = length(X)
tpast = 1:T
tfuture = (1:size(x, 2)) .+ (T - 1)
fig = plot(
tpast,
reduce(hcat, X)',
c       = (1:nx)',
layout  = (3, 1),
sp      = (1:3)',
title   = ["Lateral position \$y(t)\$" "Velocity \$v(t)\$" "Angle \$ψ(t)\$"],
ylabel  = "",
legend  = true,
lab     = "History",
)
plot!(tfuture, x', c = (1:nx)', l = :dash, sp = (1:3)', lab = "Prediction")
plot!(
tfuture,
prob.xr[:, 1:length(tfuture)]',
c   = :black,
l   = :dot,
sp  = (1:3)',
lab = "Reference",
)
Plots.frame(anim, fig)
end

history = MPC.solve(prob; x0, T = 300, dyn_actual = discrete_dynamics, callback);

gif(anim, "/tmp/selfdriving.gif", fps = 25)

We can also plot the result in a more traditional way

X,E,R,U,_ = reduce(hcat, history)

fx = plot(X', layout=nx, lab=permutedims(state_names(cont_dynamics)))
plot!(R', lab=permutedims(state_names(cont_dynamics)) .* "ᵣ", l=(:black, :dash))
plot(
fx,
plot(U', layout=nu, lab=permutedims(input_names(cont_dynamics))),
)

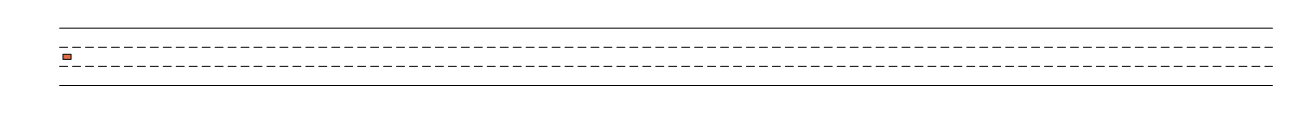

Finally, we produce a little animation of the car changing lanes. To get the $x$ coordinate which we did not solve for with the MPC controller, we redefine the dynamics to include this as well

function animation_dynamics(x, u, p, t)
x, y, v, ψ = x
a, δ = u
L = 2.9 # Length between the axels
ẋ = v * cosd(ψ)
ẏ = v * sind(ψ)
v̇ = a
ψ̇ = v / L * tand(δ)
return [ẋ, ẏ, v̇, ψ̇]
end

let
dyn = MPC.rk4(animation_dynamics, Ts)
x = [0;  x0]
Xanim = [x]
anim = Plots.Animation()

x_coords = [-1, 1, 1, -1, -1]
y_coords = 0.2*[-1, -1, 1, 1, -1]
car = Shape(x_coords, y_coords)

for i in 1:size(U, 2)
u = U[:, i]
x = dyn(x, u, p, i)
push!(Xanim, x)

fig = plot(first.(Xanim), getindex.(Xanim, 2),
ylabel  = "",
legend  = false,
lab     = "History",
ylims = (-2.3, 2.3),
xlims = (-1, size(U, 2)),
size =  (1300, 120),
framestyle = :none,
)
hline!([-0.75 0.75], c = :black, l = :dash, primary=false)
hline!([-2.25 2.25], c = :black, primary=false)
cari = Plots.translate(cari, x[1], x[2])
plot!(cari)
frame(anim, fig)
end
gif(anim, "/tmp/selfdriving_car.gif", fps = 25)
end

This concludes the example!

using Test
@test sum(abs, E[1, :])/size(E, 2) < 0.1
@test sum(abs, E[2, 50:end])/size(E, 2) < 0.5
Test Passed
